Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: U-GREAT
  • Model Number: UGCT-led time and temperature sign
  • Usage: Outdoor
  • Tube Chip Color: White
  • Display Function: Time, Clock, Temperature, countdown,count up.
  • Pixels: 16mm
  • Screen Dimension: 5",6",8",10",12",16",18",20",24".
  • Name: countdown digital clock
  • function: Time, Clock, Temperature, count down/up,numeral 0-9
  • Number format: 888:88:88:88
  • frame: metal
  • brand: U-GREAT
  • Operation: IR and RF remote,GPS
  • color: White,other color is available
  • Digit height: 8inch, other size is available
  • usage: outdoor
  • Warranty: 2 years

Packaging & Delivery

Packaging Details Normal export wooden package
Delivery Time 12 ~ 15days

Specifications

1.Displays in 12 and 24 hour format
2.Temp and humi display,Countdown/up
3.IR and RF Remoter,GPS control
4.2 years warrant

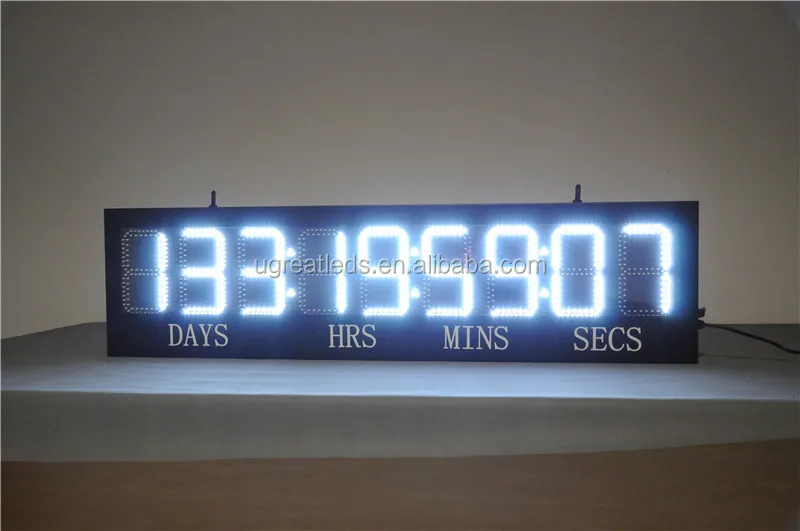

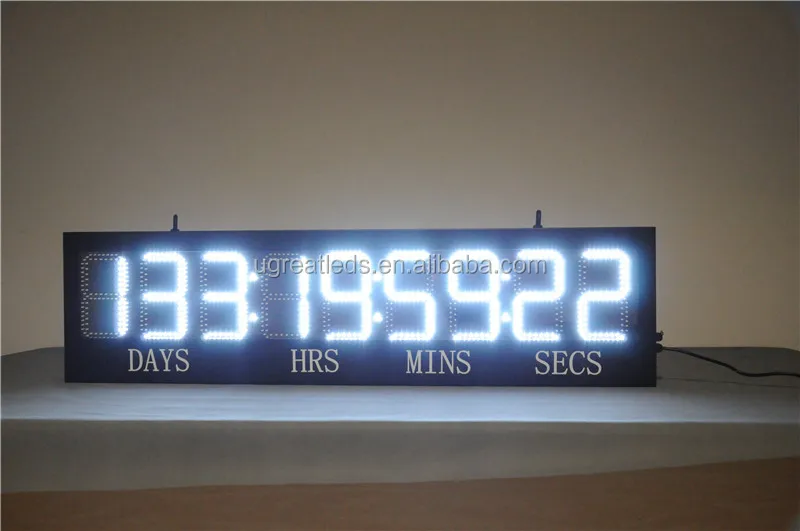

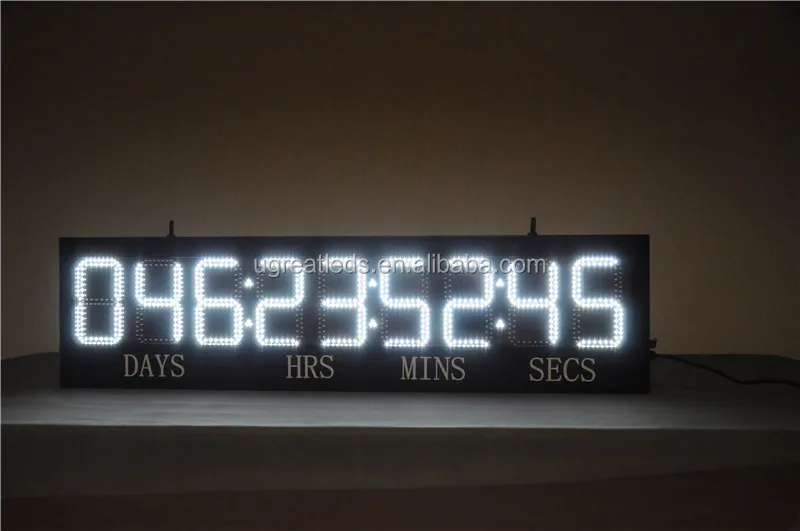

Days hours minutes seconds countdown digital clock

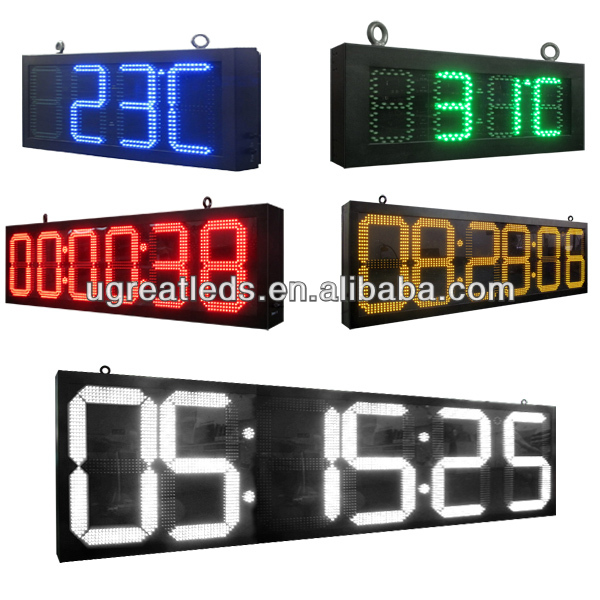

------  LED time and teperature/count down/up sign series:
  • Available in 4 ,5, 6 digits format
  • Available size from 5 inch to 24 inch in height
  • User can specify Time displays in 12 /or 24 hour format
  • User can specify the temperature displays in  Fahrenheit and/or Centigrade
  • Four signs can be connected together and synchronized.
  • The user may specify the hold time for showing time and temperature from 1-30 seconds for each display screen.
  • Super-bright, daylight visible LEDs provide over 100,000 hours of continuous operation, significantly outlasting
  • The display is energy-efficient and easy to operate, install and service.
  • The common timer(for count up and count down) is available or be customized.
  • GPS time and temperature is available.
Choose the digit format

Choose your designate color


Special Features: Automatic dimming (1,024 levels)

  •  Non-volatile Memory stores last price displayed
  • Operating Temperature: -40° to 122° F / -40° to 50° C
  • Cabinet Color: Black
  • UV Resistant Protective PC material Face
  • Warranty: One-year factory warranty
  • LED Time and Temperature displays will make you business a featured location. Super bright LEDs will get noticed and present a professional image
  • With the RF wireless feature, your time and temperature can be changed at a moments notice. Automatically switches between time and temperature
Specification and Parameter
Model NumberNumber formatMax Size CharacterHousing Dimension
(WxH)
Power
UGC-S5inch88:88:88 88:88:88127mm W630mm    H160mmR/Y:24W B/G/W:24W
UGCT-S5inch88:8°C/°F 88:8°C/°F W440mm    H160mmR/Y:16W B/G/W:16W
UGC-S6inch88:88:88 88:88:88152.4mm  W700mm    H200mmR/Y:24W B/G/W:27W
UGCT-S6inch88:8°C/°F 88:8°C/°F W480mm    H200mmR/Y:16W B/G/W:18W
UGC-S8inch88:88:88 88:88:88203.2mm W886mm    H264mmR/Y:30W B/G/W:33W
UGCT-S8inch88:8°C/°F 88:8°C/°F W602mm    H264mmR/Y:20W B/G/W:22W
UGC-S10nch88:88:88 88:88:88254mm W1114mm     H317mmR/Y:36W B/G/W:42W
UGCT-S10inch88:8°C/°F 88:8°C/°F W754mm     H317mmR/Y:24W B/G/W:28W
UGC-S12nch88:88:88 88:88:88304.8mm W1374mm     H390mmR/Y:63W B/G/W:66W
UGCT-S12inch88:8°C/°F 88:8°C/°F W934mm     H390mmR/Y:42W B/G/W:44W
UGC-S16nch88:88:88 88:88:88406.4mm W1641mm     H497mmR/Y:96W B/G/W:78W
UGCT-S16inch88:8°C/°F 88:8°C/°F W1112mm     H497mmR/Y:64W B/G/W:52W
UGC-S18inch88:88:88 88:88:88457.2mm W1830mm     H549mmR/Y:108W B/G/W:114W
UGCT-S16inch88:8°C/°F 88:8°C/°F W1238mm     H549mmR/Y:72W B/G/W:76W
UGC-S20inch88:88:88 88:88:88508mm W1966mm     H600mmR/Y:132W B/G/W:102W
UGCT-S20inch88:8°C/°F 88:8°C/°F W1329mm     H600mmR/Y:88W B/G/W:68W
UGC-S24inch88:88:88 88:88:88609.6mm W2370mm     H700mmR/Y:156W B/G/W:120W
UGCT-S24inch88:8°C/°F 88:8°C/°FW1604mm     H700mmR/Y:104W B/G/W:80W





View of company








Remote controller two kinds,



IR Remote and wirelss RF Remote





Wireless Communication Distance: RF:100-150m  IR:8m





1.) Working Temperature: -20~60 °C



2.) Working Humidity: 10~80%RH



3.) Power Input: 120-240VAC



4.) Brightness: 5000 cd/ m2



5.) Visibility: 50m~330m  (Depends on the  digital heights)



6.) Viewing Angle : H110°V40°



7.) Display Color: Available in  red, green,amber,blue, white etc ( Monochrome)







Wooden package







Welcome to contact us !







Warranty

  • Two years


Availability

  • 2 ~ 3 weeks

....
